TZ-1022
In stock
Generic
48V to 12V PoE Splitter
Gigabit PoE splitter — turns one 48V PoE cable into data plus 12V DC for non-PoE cameras, routers and access points.
KSh 1,750- Function
- Splits 48V PoE (802.3af/at) into data + 12V DC
- Input
- RJ45, 48V PoE from a PoE switch or injector
- Output
- 12V DC via 5.5 x 2.1mm barrel plug, plus RJ45 data lead
- Data speed
- 10/100/1000Mbps
- Size
- About 80 x 25 x 22mm, 17cm output leads
1
- Secure M-Pesa payment via KCB Buni, a licensed bank payment gateway
- Real order tracking — email updates at every stage, from placed to delivered
- A real Mombasa business — Makadara Road, not a drop-shipper
Overview

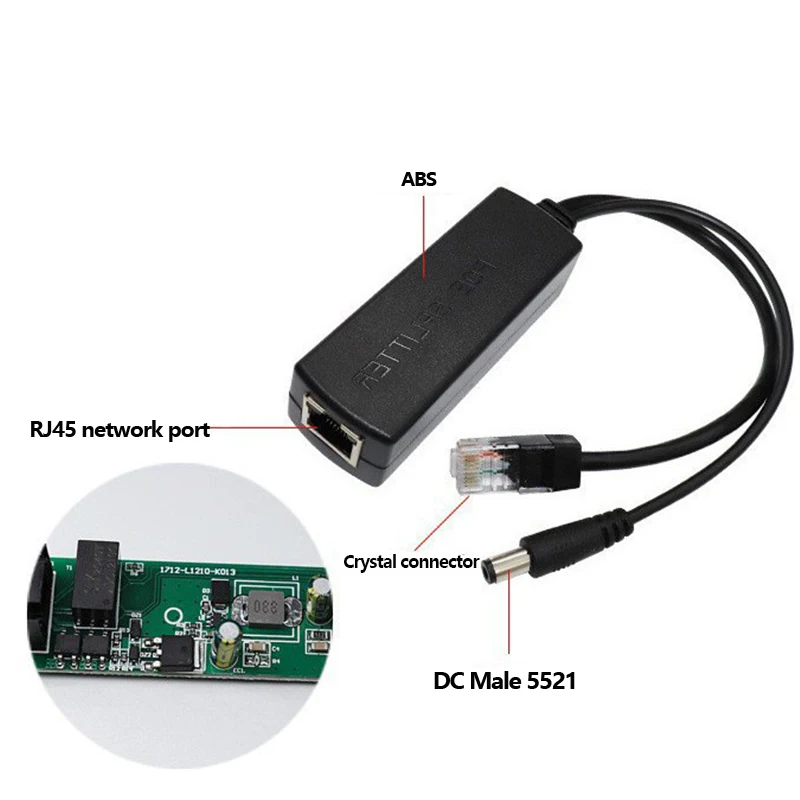

A PoE splitter that separates a 48V PoE cable into a standard Ethernet data lead and a 12V DC barrel plug (5.5 x 2.1mm), so a device with no PoE support can be powered and connected over a single cable.
Key features

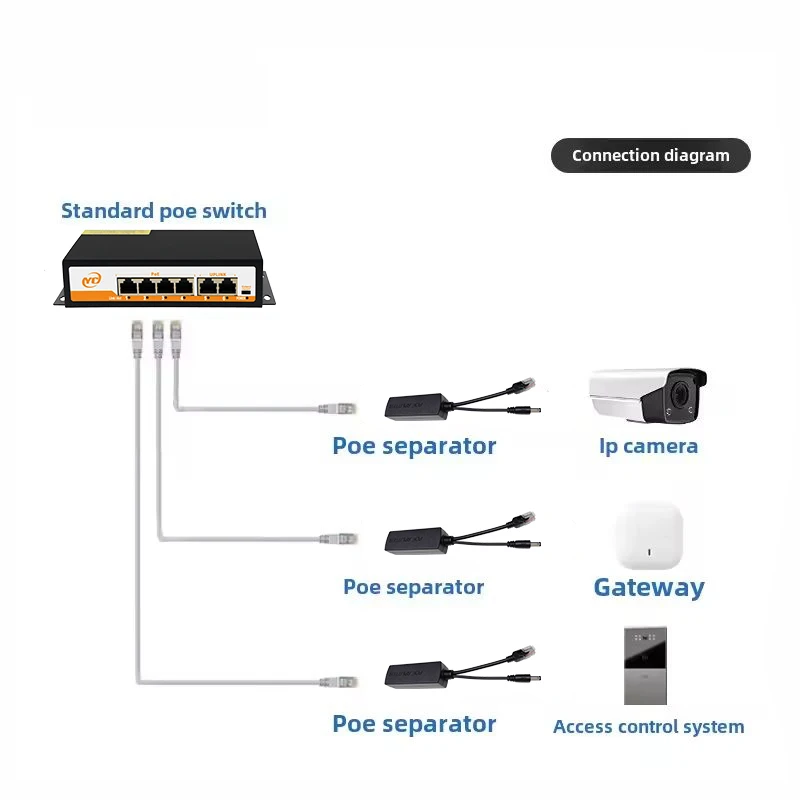

- Plug the PoE switch or injector cable into the input port, the RJ45 lead into the device, and the DC plug into its 12V power socket.
- Gigabit-rated data, IEEE 802.3af/at input.
- Typical uses: IP cameras, small routers, access points and other 12V devices.
- Check that the device you are powering takes 12V and stays within the PoE budget of your switch or injector.
Full specifications
- Function
- Splits 48V PoE (802.3af/at) into data + 12V DC
- Input
- RJ45, 48V PoE from a PoE switch or injector
- Output

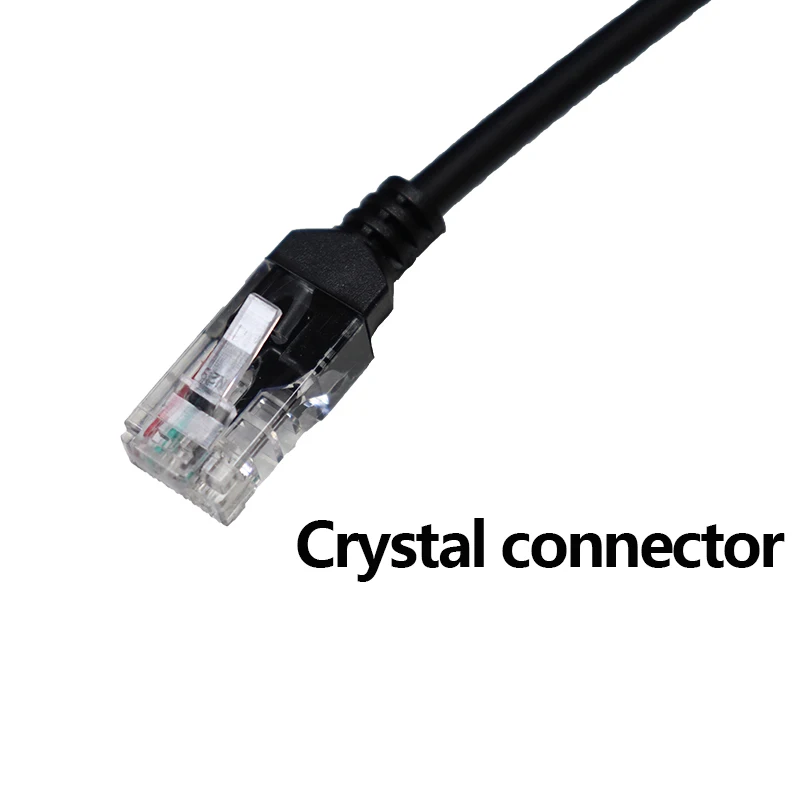

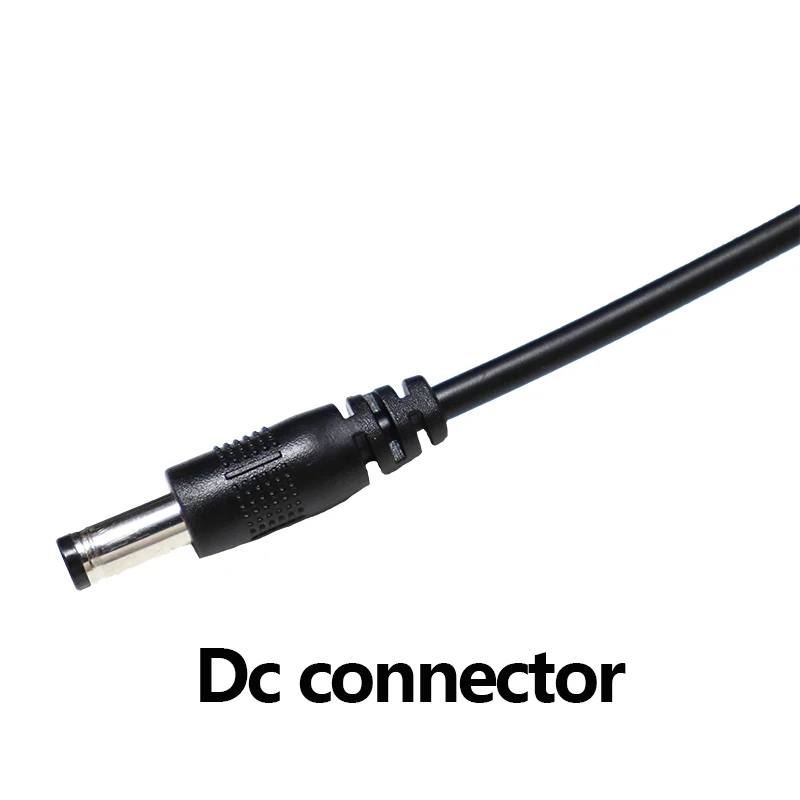

- 12V DC via 5.5 x 2.1mm barrel plug, plus RJ45 data lead
- Data speed
- 10/100/1000Mbps
- Size

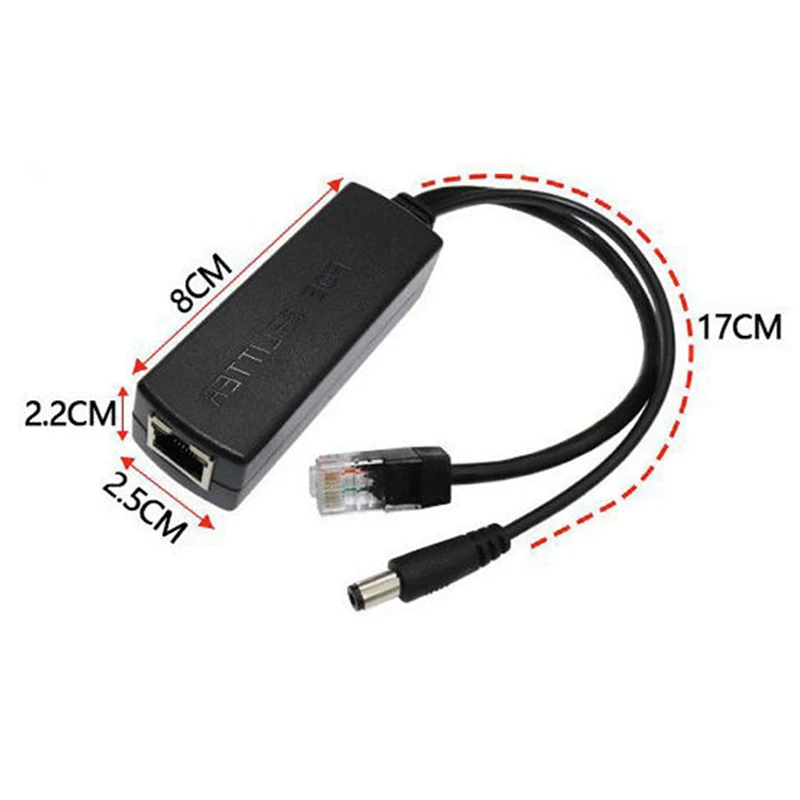

- About 80 x 25 x 22mm, 17cm output leads
- Housing
- Black ABS
