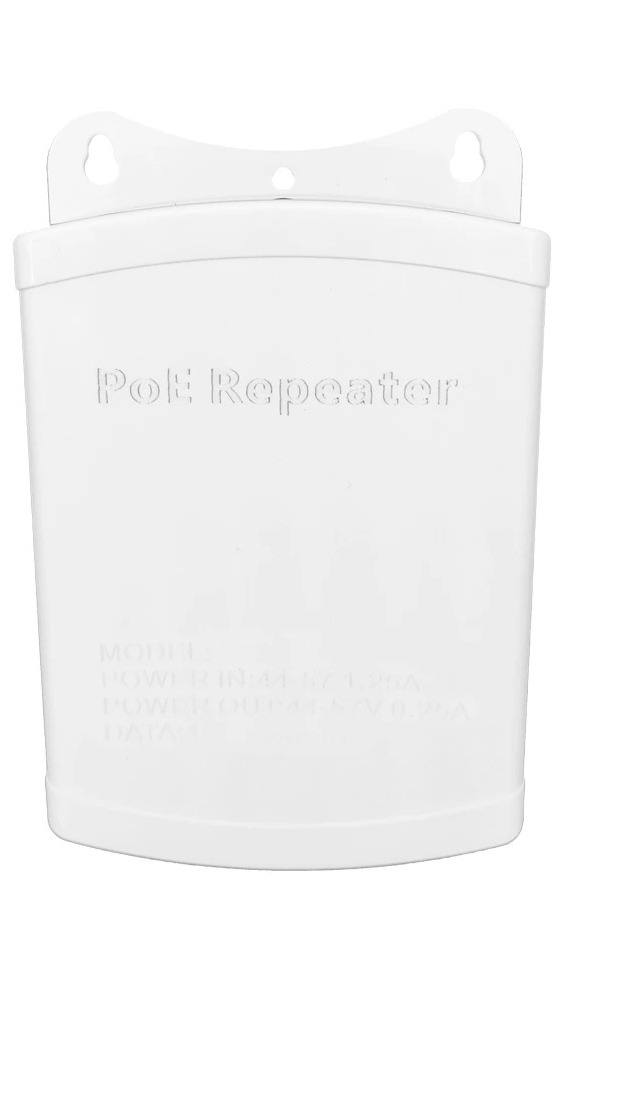

1-to-4 Gigabit PoE Extender

Overview

A 1-in/4-out PoE repeater for runs that outgrow the standard 100m Ethernet limit. Wire a PoE switch or router into the input port and each of the four outputs re-powers and re-times the signal for another full-length run, so a camera or AP at the far end of a compound doesn't need its own injector. This is the 1000M (gigabit) variant: 10/100/1000BASE-TX on every port with a 10Gbps backplane, so it doesn't cap a gigabit camera or Wi-Fi 6 AP down to Fast Ethernet the way the cheaper 100M version does.

Key features

• Accepts 802.3af/at/bt input up to 90W and redistributes it across the outputs, port 4 can pass up to 60W for a PTZ camera or high-draw AP, ports 1-3 up to 30W each for standard PoE devices.
• IP55-rated and built for outdoor mounting, with a working range of -10C to 55C, so it can live in the same junction box or pole enclosure as the cabling it's extending rather than needing an indoor cabinet.
• No configuration, no management interface, it's a physical-layer repeater, so any PoE device downstream just works as if it were plugged in 100m closer to the switch.
